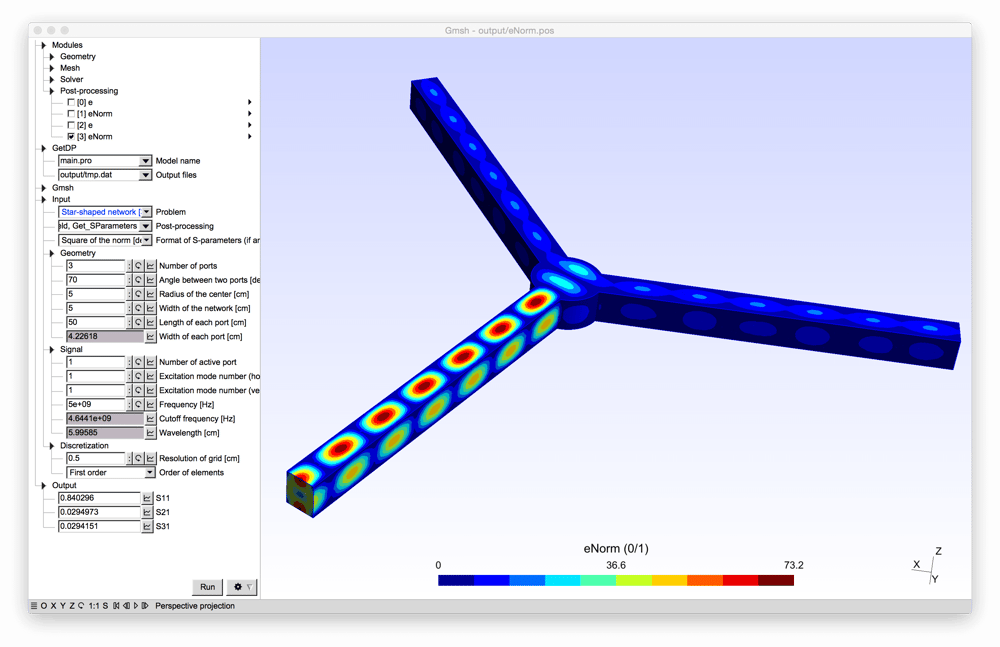

Image of Free STL Viewer for Mac, Windows & Linux: Gmsh


Gmsh is more than just a free STL viewer. It’s is a three-dimensional finite element mesh generator with a CAD engine that is used to perform complex physical simulations. Although not in the Public Domain, it is distributed under SNU General Public License, so it‘s free for you to use. But beware, this free STL viewer can be pretty overwhelming for beginners. The viewing tools enable you to cross section 3D files.

Apart from viewing 3D models, you can also create them from scratch, by defining points, lines, and surfaces. These surfaces are then extruded to form a 3D file. Since the STL file viewer can import industrial CAD formats, it is a relevant tool for engineers.

Free STL Viewer Features: Gmsh

  • OS: Windows, Mac, Linux
  • Other File Formats: STEP, IGES, and BREP


Visit: Gmshhttp://gmsh.info/


Created By ALL3DP
